S product name: NJM082

S function name: double J - FET input operational amplifier

S profile

NJM072B / 082 b and NJM072/082 is a dual jfets input operational amplifier. Its characteristic is low input bias and offset current and high input impedance and high rate. And guarantee the low harmonic distortion and low noise. The most suitable for communication, measurement and sound and so on are widely in the field of high fidelity industry.

S performance characteristics

Low operating voltage (+ / - 4 v to + 18 v)

Low J - FET input

Low high input impedance (usually 1012 Ω)

Low low input offset current (generally is 30 pa)

High swing low rate (generally for 13 v/u s, 20 v/u s)

Low broadband (generally 3 MHZ, 5 MHZ)

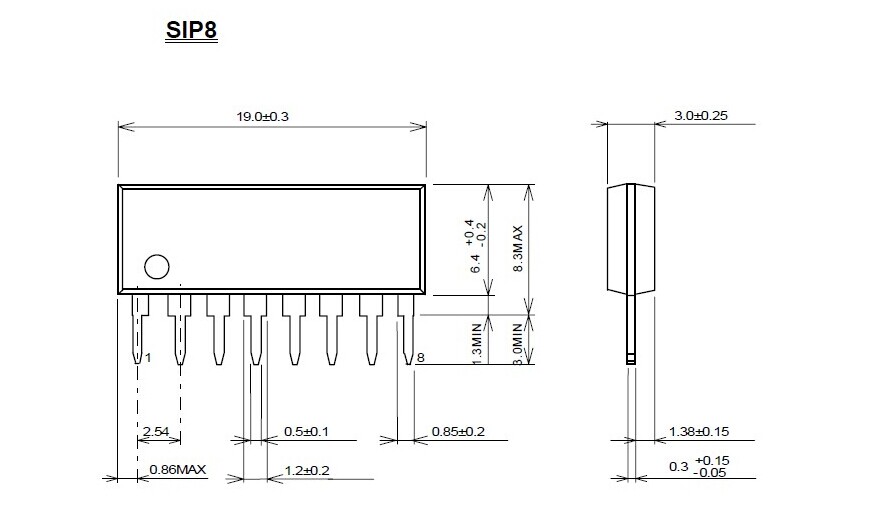

Low encapsulation (DIP8 DMP8, SIP8)

Low bipolar technology
